Flow Meter Mounting: Horizontal vs Vertical Pipe Orientation Rules
Quick Answer: A horizontal pipe run with the meter installed in a fully flooded line is the default choice for nearly all flow meter types. Vertical mounting works well for many instruments, especially electromagnetic, Coriolis, and ultrasonic flow meters, provided the flow moves upward and the pipe stays completely full. The worst case is downward flow in a vertical pipe because gravity can cause the liquid to pull away from the sensor, creating air pockets and large measurement errors.
Why Mounting Orientation Affects Accuracy
Flow meters rely on a steady, fully developed flow profile and a sensing element that is always in contact with the process fluid. When you install a meter in a vertical pipe, gravity can separate phases or create a partially filled pipe if flow stops or drops. Even in a horizontal line, uphill or downhill slopes can trap gas. Most meter types also need upstream and downstream straight pipe lengths. A horizontal meter mounted between two elbows can introduce swirl that shifts the calibration. In vertical pipes, the straight run requirement often changes. For example, some magnetic flow meters need 5D upstream straight pipe when mounted vertically upward, versus 10D in horizontal runs. That detail matters when space is tight on a mezzanine in a food processing plant.
Horizontal Pipe Installation: The Standard Approach
Horizontal mounting is the reference case in most installation manuals. It is easier to keep the sensor full, to support the meter body, and to access the electronics. For oval gear flow meters, horizontal installation is mandatory because the rotor bearings rest on the bottom of the chamber and need gravity for correct gear meshing. Even Coriolis mass flow meters, which can run vertically, are often placed horizontally in chemical batching skids to simplify piping and avoid trapped gas at the sensor inlet. At Silver Automation Instruments, we recommend horizontal orientation for high-viscosity fluids above 100 cP because vertical pipes can cause drainage and air ingestion when flow stops. A paint manufacturer in Surabaya learned this after switching a DN25 oval gear meter to a horizontal spool piece. Their batch accuracy improved by 0.5 percent immediately.
Vertical Pipe Installation: Upward Flow vs. Downward Flow
When you mount a flow meter in a vertical line, the single most important rule is to direct flow upward. Upward flow forces the pipe to remain full and helps sweep bubbles or solids through the sensor. Downward flow is risky because the fluid can freefall away from the pipe wall, especially with low back pressure. We have seen this on customer sites many times. A water discharge line after a chiller in Kuala Lumpur had a turbine meter installed in a vertical down pipe. At low cooling demand, water trickled along the pipe wall and the meter read zero while water was still flowing. Re-piping to upward flow before the meter fixed the issue completely. For electromagnetic flow meters, vertical upward mounting is standard in wastewater treatment plants. It prevents sludge settling and keeps electrodes wetted even at minimum night flow.
Orientation Rules for Different Flow Meter Principles
Different meter technologies handle vertical pipes in different ways. Here is what our application engineers specify every day.

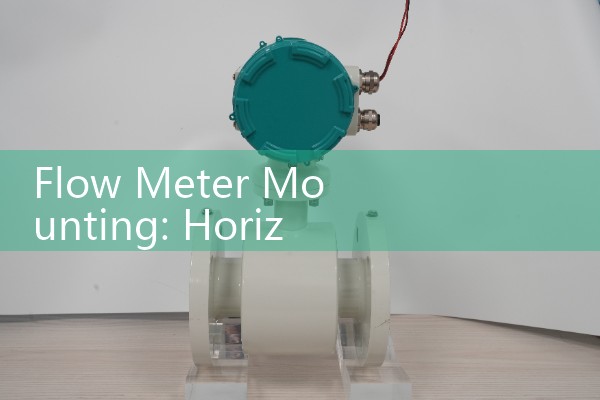

Electromagnetic flow meters (magmeters): Vertical installation with upward flow is preferred for liquids with solids or entrained air. Make sure the meter is always below the pipe outlet level so back pressure keeps the tube full. Our SEM2100 series includes empty pipe detection that triggers an alarm if the electrode loses contact, but a correct vertical lift is still the best insurance.
Coriolis mass flow meters: Silver Instruments SICM series can be mounted horizontally or vertically. Vertical upward flow helps sweep gas bubbles out of the tubes, which is critical for accurate density measurement. If you have a liquid with a tendency to outgas, such as warm milk in a dairy CIP line, vertical orientation avoids measurement noise caused by two-phase flow. In high-pressure gas service, horizontal installation is usually better to reduce pipe stress on the meter body.
Ultrasonic flow meters: Clamp-on transit-time ultrasonic meters need a fully filled pipe and a straight section of 10D upstream, 5D downstream. In a vertical pipe, upward flow is mandatory. If you have a 45-degree inclined section, you can still install clamp-on sensors, but we recommend horizontal segments wherever possible. For inline ultrasonic meters, the manufacturer calibration is done horizontally, so vertical installation may shift zero by a few mm/s. We document this deviation for every SIFLUX inline meter we ship.
Vortex flow meters: Vortex shedding meters work in any orientation as long as the pipe is full and the fluid velocity is above the minimum Reynolds number. Vertical upward flow is fine for steam and
Oval gear and positive displacement meters: These meters require horizontal mounting with the rotors oriented per the installation drawing. In vertical pipes, you may need a special bearing arrangement. Always consult Silver Instruments before you order a positive displacement flow meter for vertical service. For diesel fuel transfer skids, we supply a horizontal bypass loop rather than allowing a vertical meter orientation.
Thermal mass flow meters: Insertion thermal probes must align with the pipe diameter to measure average velocity. In a vertical pipe, the insertion length and stem orientation demand careful engineering. The probe tip must sit in the flow stream that represents the pipe cross section. In upward flow, this is easier than in downward flow where temperature stratification can bias the reading. For compressed air systems in a Philippine electronics factory, we specified a horizontal spool piece for the thermal mass meter even though the main header ran vertically.
Real-World Example: Vertical Mounting for Wastewater Sludge
Last year a customer in Indonesia asked us about a magmeter for a sludge recirculation line with only vertical space available. The pipe was DN150 and flow range was 20 to 150 m3/h, with solids concentration up to 5 percent. We proposed a Silver Instruments SEM2500 electromagnetic flow meter with PTFE liner and Hastelloy C electrodes, installed in a vertical upward section after a sludge pump. The customer added a short straightening vane upstream and kept 8D straight pipe. The meter has been running for 11 months without drift. The empty pipe alarm activated only once, when the pump lost prime, which helped the operator avoid a dry-run situation. This kind of detail matters more than the general rule.
FAQ: 5 Common Vertical vs. Horizontal Mounting Questions
1. Can I mount a flow meter in a vertical pipe with flow going down? It is possible only if you install a back-pressure device such as a flow control valve downstream to keep the pipe full. Even then, a downward flow installation is not our first recommendation. If you must, send us your pipe layout and we will simulate the pressure profile.
2. Does vertical mounting void the calibration certificate? For most industrial meters, the calibration is done in a horizontal test bench. Vertical mounting can cause a small zero shift, typically within 0.2 percent for Coriolis and magnetic meters. We can apply a field zero adjustment if needed. Inform us before ordering if your meter will only operate vertically, and we will note this in the calibration report.
3. What is the minimum straight pipe for vertical electromagnetic flow meters? Our SEM2100 and SEM2500 magmeters require 5D upstream and 2D downstream in vertical upward flow with a concentric reducer. If a pump or elbow is less than 5D away, we recommend a 10D inlet run or a flow conditioner. Always share an isometric sketch with application data.
4. Are there flow meters that must never be installed vertically? Positive displacement meters with mechanical registers and some turbine meters can suffer bearing wear in vertical service. Oval gear and nutating disc meters generally need horizontal mounting. Check with the manufacturer. For example, our oval gear flow meter for diesel cannot be used in vertical pipes without a custom bearing option.
5. How to make sure the pipe stays full at low flow rates? In a vertical upward line, locate the meter downstream of a pump or a check valve. Maintain at least 0.5 bar back pressure at the meter outlet. In horizontal lines, install the meter in a low point or a U-seal section. Our application team can help with a hydraulic review if you provide the piping and instrumentation diagram.
