Rice Bran Oil Flow Meter Processing Line Filter Monitoring
Quick Answer: Rice bran oil processing needs flow meters on raw oil, bleaching, dewaxing, and final loading lines. The most suitable instruments for these applications are positive displacement oval gear flow meters and Coriolis mass flow meters. Differential pressure transmitters on filter housings give real-time clogging data so your maintenance team replaces filter elements at the right time, not too early or too late.
Where Flow Measurement Matters in a Rice Bran Oil Plant
Rice bran oil is not like water. It has a typical viscosity of 25 cP to 45 cP at 40 °C. You cannot just pick any flow meter and expect accuracy. In our experience with edible oil plants in Bangladesh, Thailand, and Nigeria, the lines that benefit most from reliable flow data are:
Crude oil transfers from storage to the degumming kettle. Flow meters here let you track yield from the extraction section. If your hexane-extracted crude oil flow drops unexpectedly, your team can check the desolventiser or miscella tank for a blockage.
Bleaching earth dosing. Many plants dose by weight, not volume. A small Coriolis meter on the bleaching agent line gives mass flow directly. No need for density compensation because the meter measures true mass flow in kg/h.
Dewaxed oil and winterised oil transfer to storage. At this stage the oil is cleaner but still viscous at lower temperatures. Oval gear meters with PPS rotors handle this well up to 15 bar line pressure.
Final product loading into road tankers or ISO containers. This is where a billing-grade reading matters. We have seen customers save 1.2% to 2.5% per shipment just by moving from manual dipstick records to a Coriolis meter with ticket printing.
Recommended Flow Meter Types for Rice Bran Oil
Our Silver Automation Instruments oval gear flow meter is the most common choice for edible oil batches up to 30 m³/h in DN25 to DN80 lines. The measuring chamber has helical oval gears that trap a precise volume per rotation. With a PT100 temperature element threaded into the meter body, you get volume total but also temperature reading on the same local display. ATEX Zone 1 approval is standard for solvent extraction areas where hexane vapours may be present.
If your application requires mass balance for recipe control, a Silver Instruments Coriolis mass flow meter in DN15 to DN50 size handles oil flow ranges from 50 kg/h to 15,000 kg/h. The meter gives simultaneous mass flow (kg/h), density (kg/m³), and temperature (°C). This density reading is surprisingly useful. A sudden density drop in rice bran oil often means water carry-over from a washing stage or incomplete drying after caustic neutralisation.
For cooling water, steam condensate, or CIP return lines inside the same processing building, we specify electromagnetic flow meters with 316L electrodes and PTFE liner. These are purely conductive liquid applications. The meters ignore the oil content because oil does not conduct, but water and caustic solution conductivity above 5 µS/cm is enough for accurate reading.
Filter Monitoring Without Guesswork
Most rice bran oil plants use plate-and-frame filters or vertical pressure leaf filters to remove spent bleaching earth and precipitated waxes. Maintenance managers normally change filter cloths or leaves based on a fixed calendar schedule. In practice, this leads to two problems. You either change too early and waste good filter media, or you change too late and risk pressure spikes that rupture the cloth.
A differential pressure transmitter with a 4-20 mA HART output, connected with impulse lines to the inlet and outlet of the filter housing, gives you a live ∆P value. We typically set

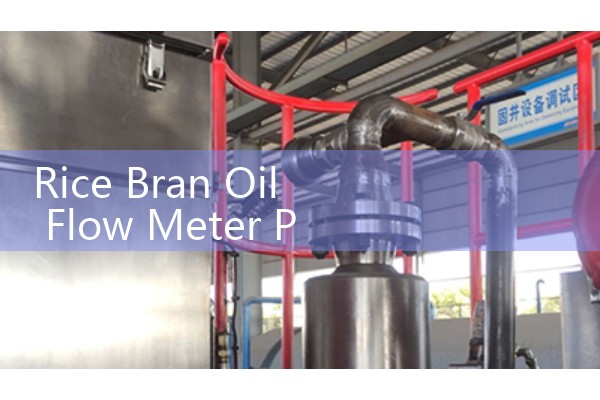

_600x400.jpg)
The same principle works on bag filters in the loading bay. A low-cost pressure transmitter on the pipe upstream of the filter, combined with a pressure gauge downstream, can be replaced by a single DP cell for better accuracy. If your control system is simple, we often recommend our paperless recorder to log pressure and flow trends together. That way, the operator sees the link between oil flow rate and filter pressure drop over a 24-hour batch cycle.
Installation Details Engineers Often Skip
When you install an oval gear meter on a rice bran oil line, keep the pipe full at all times. Air slugs give false readings and accelerate gear wear. A backpressure valve after the meter, set to about 0.5 bar, solves this. We also recommend a Y-strainer 200 mesh upstream, because particles of spent bleaching earth larger than 75 microns can block the gear mesh clearance.
For Coriolis meters on hot dewaxed oil at 15 °C to 25 °C, provide solid pipe support within 3 pipe diameters of the meter flanges. If the meter vibrates from nearby positive displacement pumps, install flexible hoses or bellows to break the vibration path. A paint manufacturer in Southeast Asia ignored this and got 3% measurement drift on their meter. After adding simple clamping supports, the drift disappeared entirely.
All housings with impulse lines to DP transmitters should be heat-traced if the oil can solidify at ambient temperature. Rice bran oil has a pour point around -2 °C to 5 °C, but during winter shutdowns in western New South Wales or northern Pakistan, we have seen lines solidify. A simple electrical heat trace with insulation is cheap insurance.
How to Order the Right Instrument
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Tell us the fluid state (raw crude, bleached, dewaxed, or refined). Mention if the area classification is ATEX Zone 1, Zone 2, or safe area. We will recommend a meter model, a filter monitoring pressure transmitter, and the best seal material. For edible oil, EPDM or FKM seals are typical, but we will confirm based on your actual process temperature and any cleaning chemicals used.
FAQ
Q: Can I use an electromagnetic flow meter for rice bran oil?
A: No. Rice bran oil is non-conductive. Electromagnetic flow meters need a minimum conductivity of 5 µS/cm. Use an oval gear or Coriolis meter instead.
Q: What is a typical filter ∆P alarm point for bleaching earth filters?
A: We usually set 1.2 bar as the early warning and 1.8 bar as the critical alarm. This depends on the filter design pressure rating, so check your manufacturer plate.
Q: Do I need ATEX certification on flow meters in the extraction plant?
A: Hexane is flammable. If the meter is installed in a Zone 1 area, you need ATEX Ex ia or Ex d certification. Our oval gear meters are available with ATEX approval.
Q: Can one flow meter handle both hot and cold rice bran oil batches?
A: Yes, if the meter is sized for the highest viscosity at the lowest temperature. We need both viscosity values to check the turndown ratio and pressure drop.
Q: How do I know if my filter is worn out or just clogged?
A: A DP transmitter paired with a flow meter gives you a trend. If ∆P rises at a constant flow rate, the filter is clogging. If ∆P stays low but oil clarity drops, the filter cloth may be torn. That needs an inspection.
