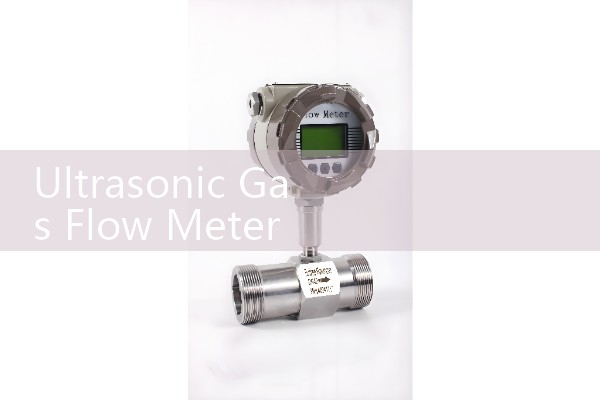

Quick Answer: RS485 Refrigerant Flow Meters for Building Automation
Refrigerant flow meters with RS485 output let you daisy-chain up to 32 gas sensors on a single bus. This cuts cable runs, centralizes data logging, and slashes wiring cost in large HVAC plants. Silver Instruments supplies refrigerant mass flow meters with Modbus RTU, 4-20 mA HART, and pulse output. Send us your refrigerant type, pipe size (DN), and pressure range, and we will return a price within 24 hours.
Why Electrical Contractors Hate Traditional Analog Wiring
A single 4-20 mA loop works fine for one sensor. But a pharmaceutical cold storage facility in Malaysia had 28 refrigerant monitoring points across 4 floors. Hardwiring 28 shielded pair cables back to the PLC panel took 3 electricians 5 days. Troubleshooting a ground loop later took another week. In practice, most engineers skip this part during the planning stage and regret it later. So the shift to digital bus architecture is not a trend. It is a survival tactic for large building projects.
RS485 and Modbus RTU: The Field Bus That Just Works
RS485 is a differential serial communication physical layer. It runs on twisted pair cable. Distances up to 1200 meters are achievable at 9600 baud without a repeater. For refrigerant gas tracking in a Dubai hotel complex, we configured 22 Silver Instruments inline flow meters on one Modbus RTU trunk. Each meter had a unique slave ID from 1 to 22. Data from all sensors appeared on a single BMS screen. No signal isolators, no analog input cards, no mess.
Daisy-Chaining Multiplexed Gas Sensors: The Actual Wiring Scheme
The term daisy-chain means A+ to A+ and B- to B- from one meter to the next. You do not need a star configuration. The line must be terminated with a 120 ohm resistor at both ends. A chemical plant in Thailand used our Coriolis mass flow meters for R134a and R410A. They hooked up 16 meters in a straight line along a refrigerant reclaim rack. Power was supplied locally to each meter because RS485 only carries data, not power. That detail trips up newcomers. But after termination resistors were in place, signal quality was solid. Zero timeout errors over 18 months.
What Makes a Flow Meter Suitable for Refrigerant Gas in HVAC-R
Refrigerants are tricky. Two-phase flow can happen after an expansion valve. The meter must handle gas at varying densities. Silver Instruments recommends thermal mass flow meters for pure gas phase lines. These meters measure mass flow directly in kg/h or scfm at standard conditions. For liquid refrigerant lines before evaporator, a Coriolis meter works better because it ignores density changes and gives direct mass flow. We have seen this on customer sites many times. A food processing plant in Vietnam tried a vortex meter on liquid R404A. Low flow cut-off was a problem. They switched to a DN15 Coriolis with M12 electrical connector and RS485 output. The reading stabilized immediately.
Key Specs to Ask Before You Order
Here is the thing. Not all RS485 meters use the same protocol. Some use Modbus RTU, some use BACnet MS/TP, some use proprietary strings. For building automation, many BMS controllers speak BACnet. Our default output is Modbus RTU over RS485, but we can flash the firmware to BACnet MS/TP on request. Specify this when you send the RFQ. Also specify the refrigerant: R32, R290, R-744 (CO2) each have different safety classifications. For flammable refrigerants like R290, an ATEX Zone 2 or ATEX Zone 1 certification is mandatory in most jurisdictions. Silver Instruments offers meters with II 3G Ex nA IIC T4 for Zone 2.
Actual Customer Data: Multiplexing 12 Sensors in a Cold Storage Facility in Australia
Last year a customer in Brisbane asked us to mimic a competitor setup. They had
How to Avoid Ground Loops and Noise on the RS485 Bus
Use shielded twisted pair with the shield connected at one point only, usually at the BMS panel. Do not ground the shield at every meter. Keep the bus away from VFD cables. A PVC conduit with 300 mm separation from power lines prevents 90% of intermittent faults. A data center operator in Singapore ignored this rule. Their refrigerant monitoring bus would lock up when a compressor VFD ramped up. Our support engineer suggested a 10 ms register polling delay and a ferrite bead on the bus wire. Problem disappeared.
Silver Instruments Refrigerant Flow Meter Models with RS485
We have three families that fit most budgets. The SFC series thermal mass flow meter covers DN15 to DN50 for pure gas refrigerant. Its measured range is 0.3 to 30 Nm/s, accuracy ±1.5% of reading. The SCM series Coriolis mass flow meter handles liquid or supercritical refrigerant from DN04 to DN150, accuracy ±0.2%. Both include an isolated RS485 port and Modbus RTU as standard. For basic data aggregation where high accuracy is not critical, we offer the low-cost turbine flow meter with a Hall effect pickup and a DIN rail converter that outputs RS485. But for building automation where billing and energy management depend on the data, the Coriolis remains the smart choice.
FAQ
Q: Can I connect 32 refrigerant flow meters on one RS485 string?
Yes, with Modbus RTU you can address up to 247 devices, but electrical loading limits it to 32 unit loads per segment. A segment is one uninterrupted bus. Add a repeater for more.
Q: Do you offer BACnet output?
We can supply meters with BACnet MS/TP upon request. Lead time is typically 2 weeks longer. Mention this need when inquiring.
Q: Is the meter certified for flammable refrigerants?
Our ATEX Zone 2 certified model covers II 3G Ex nA IIC T4 for gases like R290. We require a P&ID to confirm the zone classification before quoting that option.
Q: What cable do you recommend for RS485 daisy-chaining?
Belden 3105A or equivalent: 1 pair twisted, 22 AWG, 120 ohm characteristic impedance. Do not use CAT5/6 for long runs unless it has the correct impedance.
Q: How do I get a price for 10 refrigerant flow meters with RS485?
Send an email to [email protected] with refrigerant type, pipe size, flow range, pressure, temperature, and output protocol. Our support team will reply with a formal quote within one business day. You can also call us at +86-135-1213-1526 or message us on WhatsApp at 86-135-12131526. Engineering data sheets are available in English, Spanish, and Portuguese.
Silver Automation Instruments supplies industrial flow meters to OEMs, system integrators, and end users in Southeast Asia, Oceania, Africa, the Middle East, and South America. Over 70% of our RS485 flow meters go into building management, district cooling plants, and refrigeration monitoring. We maintain inventory for DN15 and DN25 Coriolis meters with RS485. Delivery is often 5 to 7 working days to a DHL hub. Good engineering support is the real product. That is why customers continue to integrate our meters into their BMS.
